SPECIFICATIONS

Brand Name: XWST
Certification: CE,RoHS
Choice: yes
Conversion Efficiency: >93%
High-concerned chemical: None
Input voltage: DC 12V 24V
Input voltage Range: DC 8-40V
Model Number: XW-1224-5
Origin: Mainland China
Output Current: 1-40A
Output Frequency: 43hz
Output Power: 101 - 200W
Output Type: SINGLE
Output Voltage: DC 5V
Shell: Aluminum

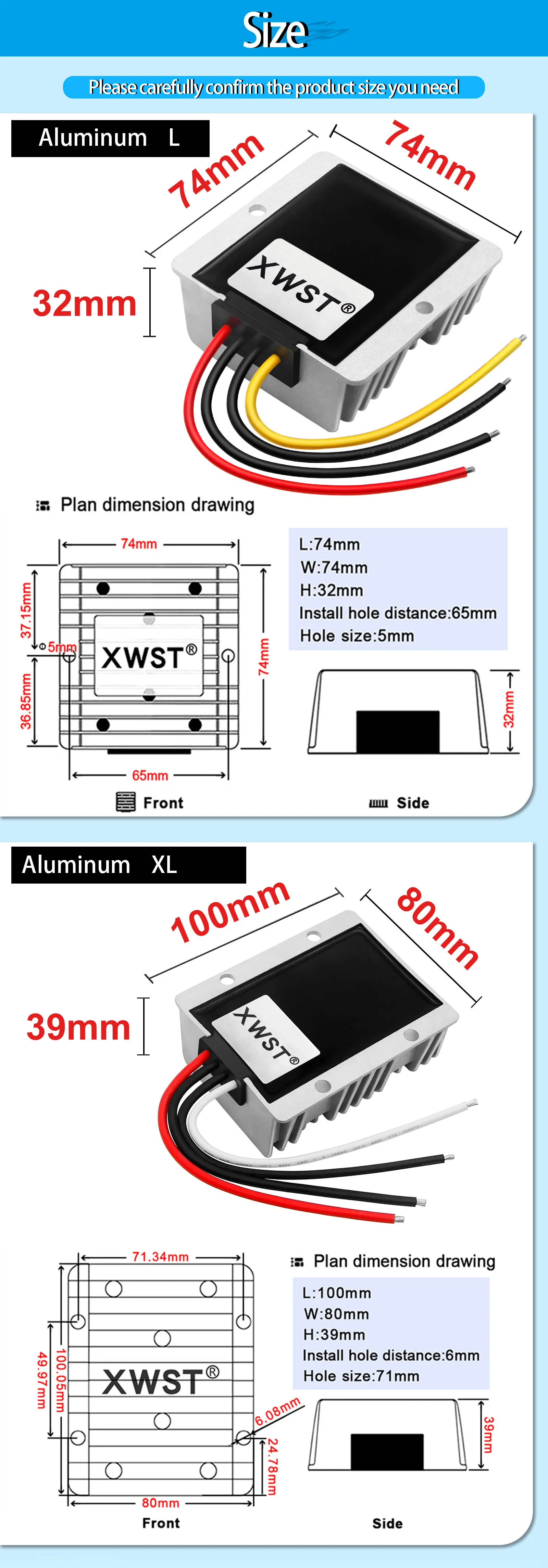

Size: 74*74*32MM
Type: DC/DC Converters
Warranty: 1 year
Waterproof: IP67
Weight: 260g
Working Temperature: -30°C to +80°C
is_customized: Yes
semi_Choice: yes

DC DC 12v 24v to 5v voltage converter 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A step up down buck 5v voltage reducer

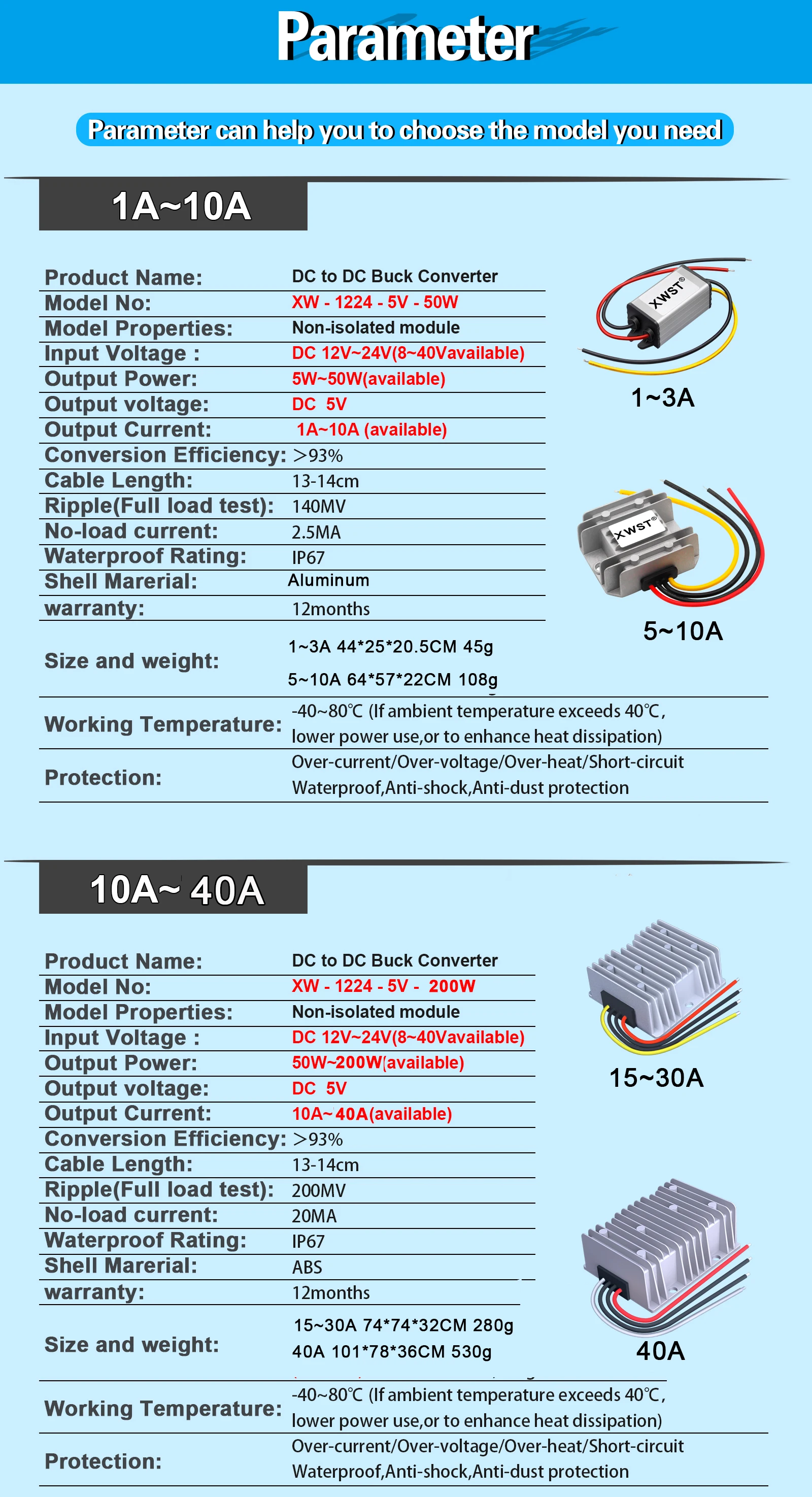

Model No.      XW-1224-5-5W~200W
Module Properties       Non-isolated Module

Input Voltage        DC 12V 24V
Input Voltage Range    DC 8-40V

Output Voltage     DC 5V
Output Current      1A / 2A / 3A / 5A / 10A /
15A /20A /25A/ 30A/ 40A
Output Power       5W / 10W / 15W/ 25W/ 50W /75W / 100W/ 125W/150W / 200W

Conversion Efficiency >93%
Ripple (Full load test)  40mV
No-load Current    (1-10A)3.5mA;    (10-30A)25mA ;    (40A) 40mA
Working Temperature -40~80℃

Attention:

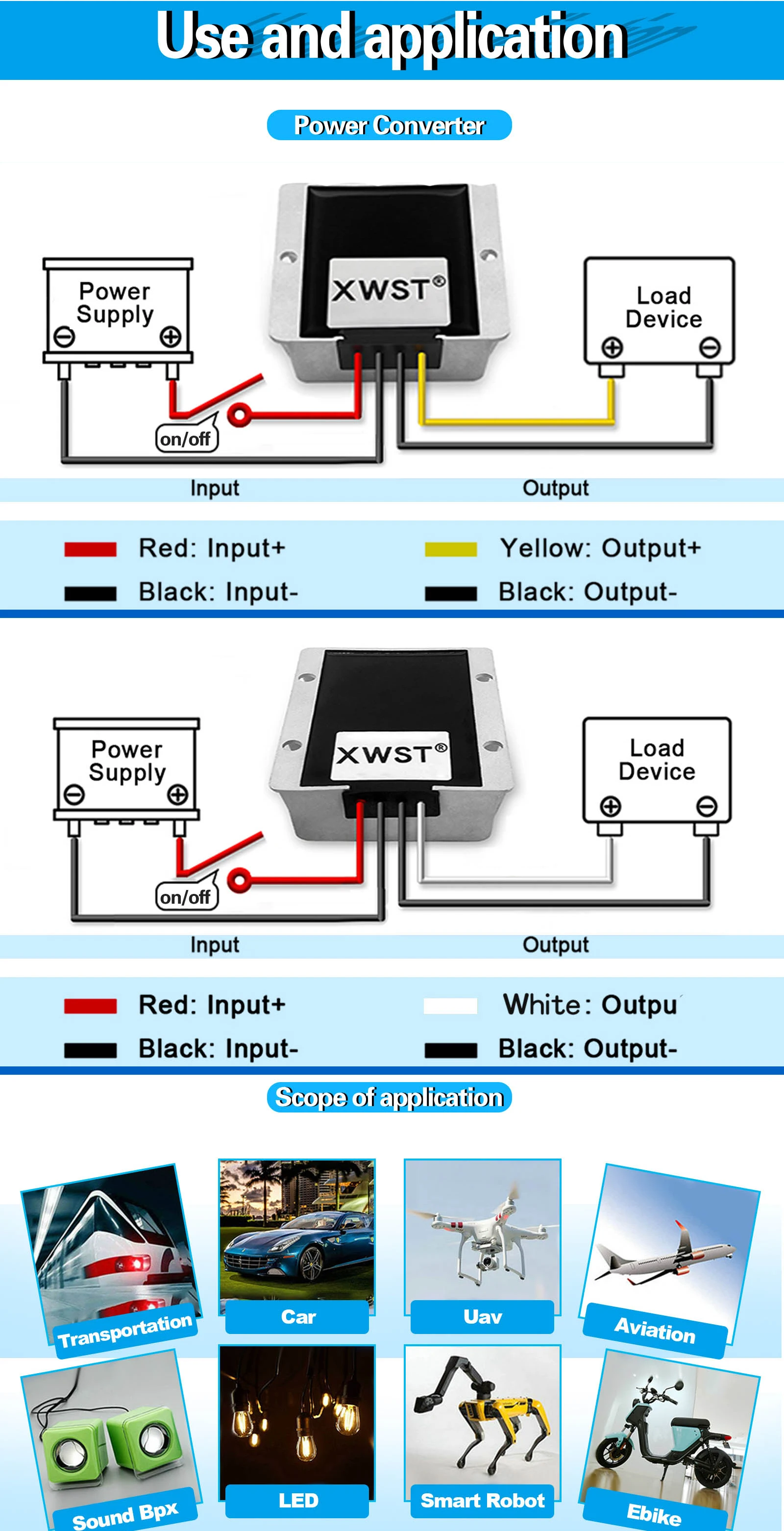

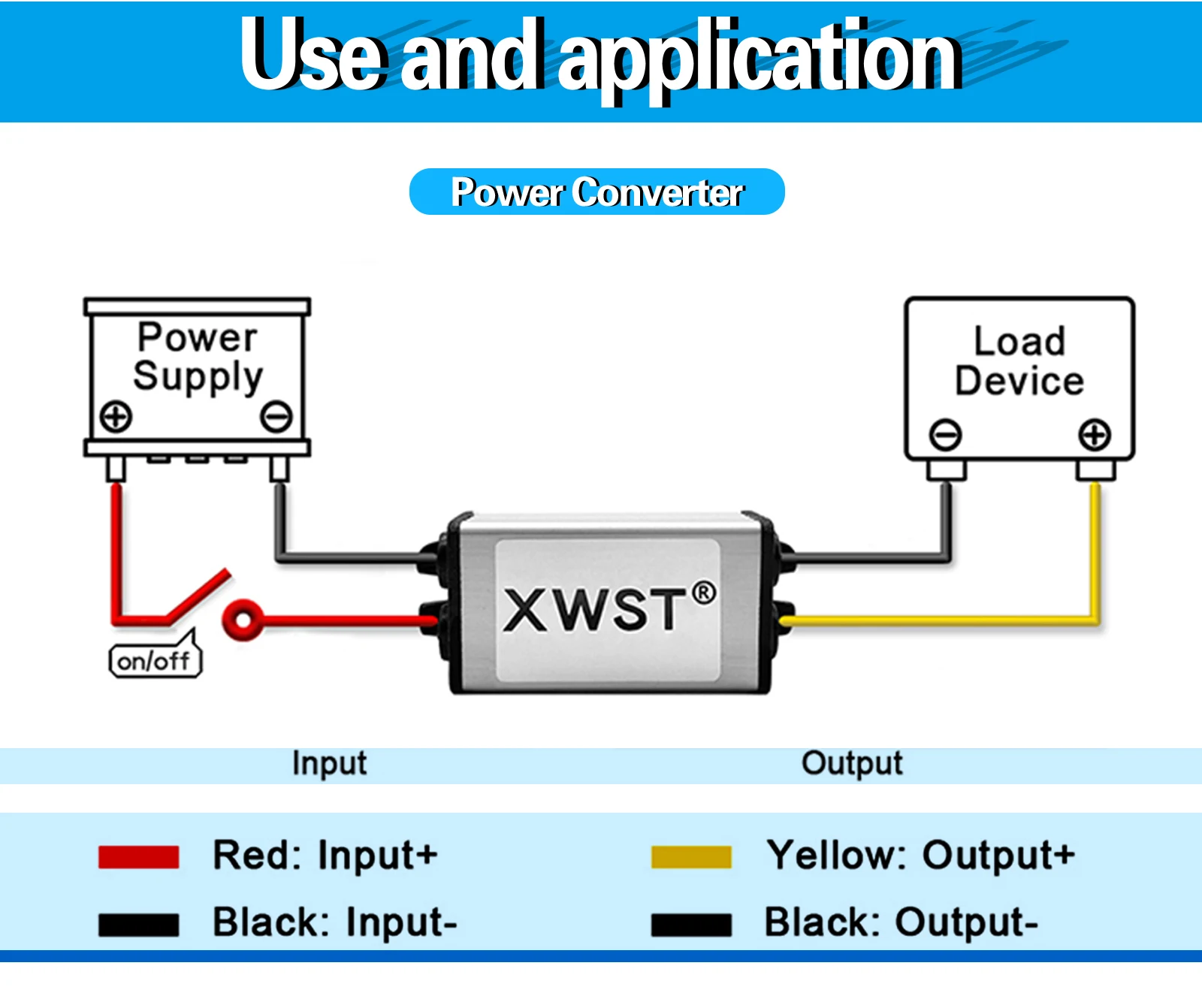

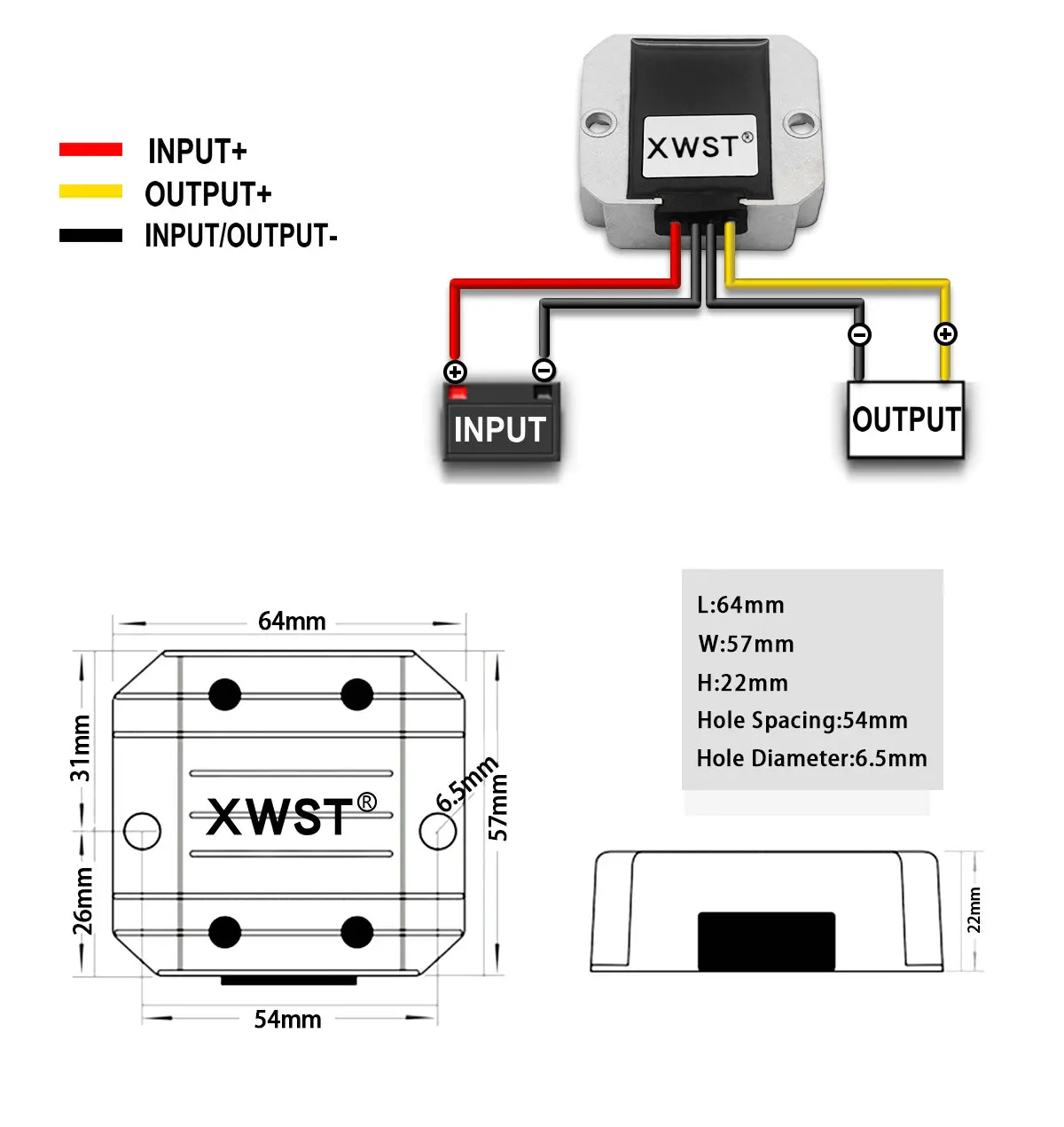

Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
This converter can't be used to charge battery, if you need please order our battery charger converter.
XWST focus on power conversion solutions including DC to DC step up boost converters, step down buck converters, auto boost and buck converters, voltage regulator
