SPECIFICATIONS

Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS,UL
High-concerned chemical: None
Model Number: SMLIGHT SLZB-06/06M
Origin: Mainland China












WELCOME TO THE WORLD OF SMLIGHT SLZB-06, SLZB-06M, SLZB-06P7, SLZB-06p10, SLZB-06Mg24 and SLZB-06-NO-POE - MOST ADVANCED AND POWERFULL POE ETHERNET ZIGBEE AND MATTER-OVER-THREAD ADAPTERS
NEW! SLZB-06, p7, p10 got Matter-over-Thread support!

Pay Attention:
1. Before purchasing, please carefully read the functions of each product and choose the correct model. If you purchase the wrong product due to your own reasons after receiving it, we will not support return.
2. After receiving the goods, if you encounter any product problems, please submit your question to https://support.smlight.tech/supportcenter/public/en/customer/create-ticket/
Our technical after-sales development engineer will reply to you as soon as possible and help you solve the problem. Please be patient and wait for a reply.
3.POE Can not Connect to Router Diretly,POE Connect need a Standard 802.3af/at 48V,You Can Order from this link:
https://www.aliexpress.com/item/1005008246663885.html

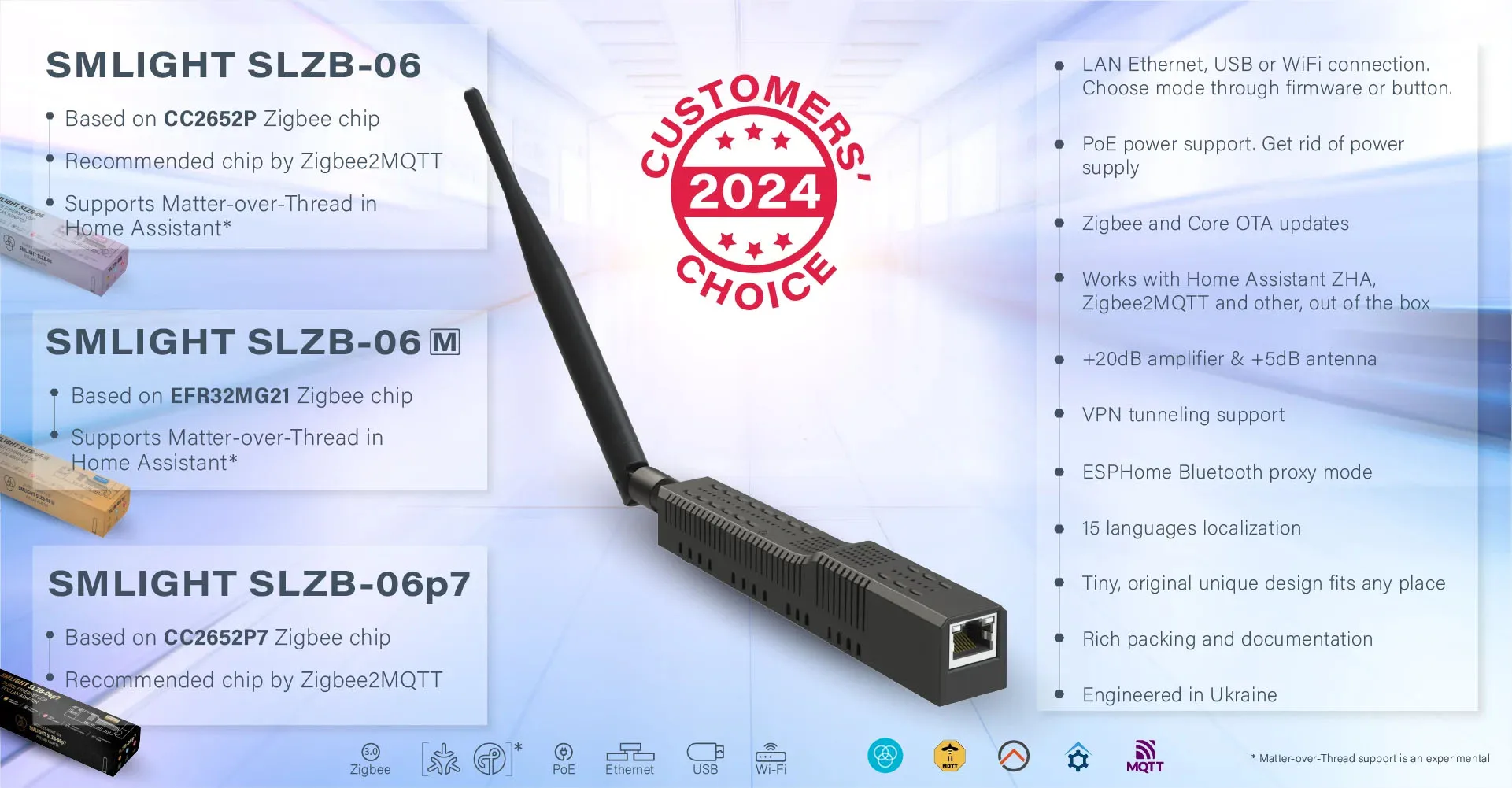

WHAT IS SMLIGHT SLZB-06, SLZB-06M, SLZB-06P7, SLZB-06P10 and SLZB-06Mg24 ZIGBEE ADAPTER?
SMLIGHT SLZB-06/06M/06p7/06p10/06Mg24 are a network device that serves as a central bridge for managing communication in a Zigbee network. SLZB-06 can also serve a Matter-over-Thread network. The devices are designed specifically for Zigbee2MQTT and ZHA Home Assistant ensuring smooth work out-of-the-box. These devices have the smallest size and reachest packing.



KEY SPECIFICATIONS FOR SLZB-06* SERIES ZIGBEE COORDINATORS:
✅ 3 modes: Zigbee-to-Ethernet, Zigbee-to-WiFi and Zigbee-to-USB.
✅ Matter-over-Thread experimental: SLZB-06 has also experimental supports of Matter-over-Thread.
✅ Options on different Zigbee SoCs: SLZB-06 on CC2652P, SLZB-06p7 on CC2652P7 and SLZB-06M on EFR32MG21.
✅ Pre-flashed and ready to use with Zigbee2MQTT and ZHA (plug-and-play).
✅ PoE and Type-C powering, PoE IEEE 802.3af standard support.
✅ Zigbee and Core firmware OTA update over web-interface (one-click update).
✅ Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz + 16Mb memory.
✅ VPN tunneling with Home Assistant and security authorizations.
✅ Securely protected login with password to web-interface, internal whitelist firewall settings.
✅ Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install as many coordinators to work with Zigbee2MQTT+Home Assistant as you want.
✅ 15 language localization interfaces.
✅ LED control and night mode.
✅ Small and tiny design, just 22x24mm.
✅ Rich packing: Zigbee Coordinator, +5dB antenna, screws and screwdriver, adhesive tape, Type-C adapter, manual.
✅ Coordinator or Router Zigbee firmware.
✅ Standard or Opensource Core firmware.


ZIGBEE SOC SPECIFICATIONS:
⭐ SLZB-06, (NEW! Experimental Matter-over-Thread support! since Apr'24) based on CC2652P Zigbee chip with Cortex M4F 48Mhz, 88kB RAM; recommended by Zigbee2MQTT; completely good for ZHA;
⭐ SLZB-06M, based on EFR32 Zigbee chip with Cortex-M33 80Mhz, 96kB RAM – native for ZHA Home Assistant and works well with Zigbee2MQTT;
⭐ SLZB-06p7, based on CC2652P7
