SPECIFICATIONS

Accessory Type: Battery Accessories
Battery Included: No
Brand Name: JKBMS
Certification: CE,FCC,RoHS
Charger included: N
Feature 1: JK Display
Feature 2: JIKONG display
High-concerned chemical: None
JK Accessory: LCD display monitor
Jikong SMART BMS Display: Lifepo4 Battery BMS Accessory
Model Number: JK BMS Accessories
Origin: Mainland China
Typle: JK BMS 2.3 4.3 inch Display
works for: most JK BMS board

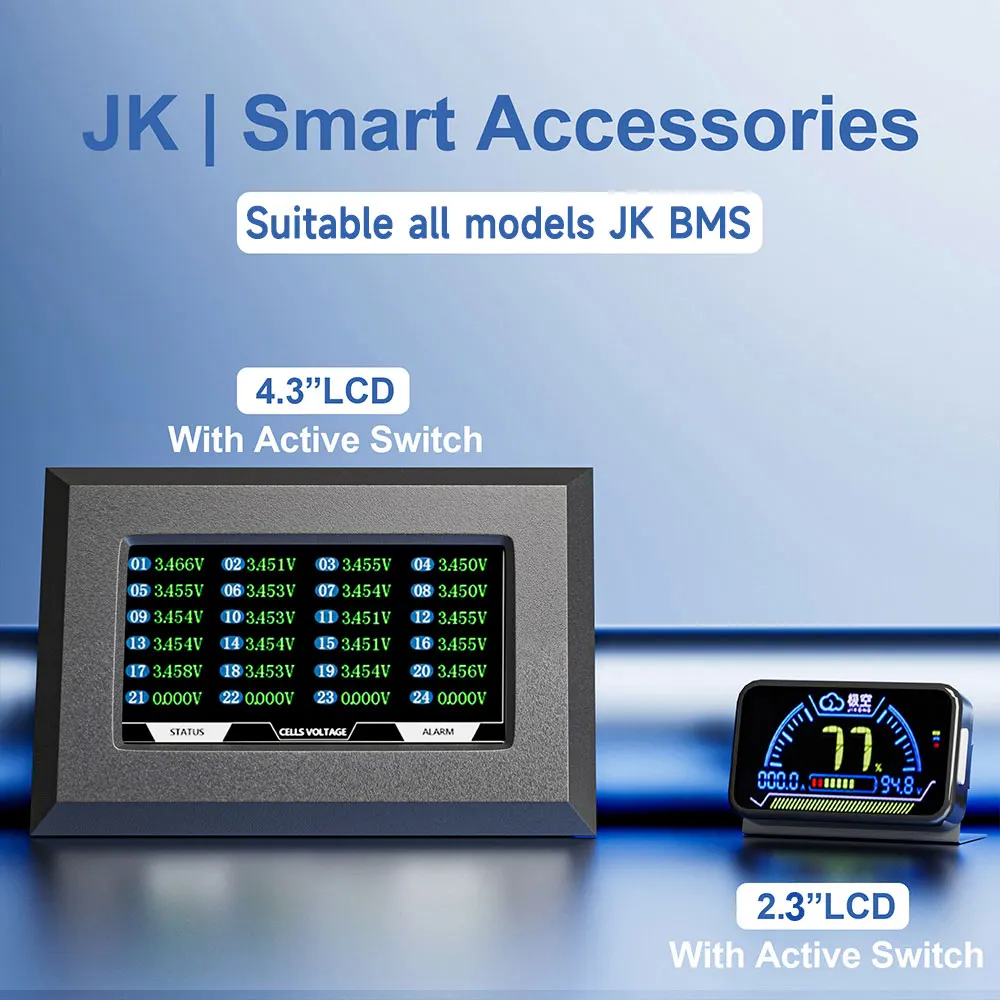

JIKONG BMS LCD Display 2.3 4.3 Inch Lithium Battery Smart BMS Accessories Intelligent Battery Level Indicator JIKONG BMS Monitor

LCD interface(At present, all JK BMS are configured with LCD interface by default)
(Except of JKBD4A17S4P)

JK BMS 2″ Display User Manual
The JK 2″ display is a companion display to the JK BMS. It has a two inch screen that displays the battery SOC, current, battery voltage, and error codes.

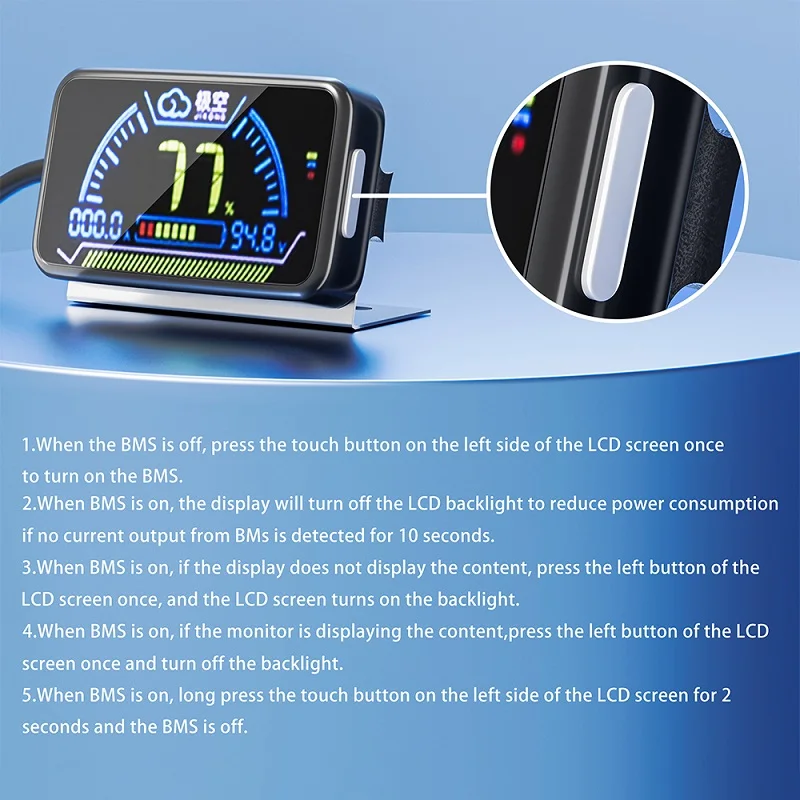

This 2″ display also has a button to activate/deactivate the BMS.
It comes with a 3 meter cord, so you can place it anywhere you can easily view it.
It works with the full range of JK BMS models.

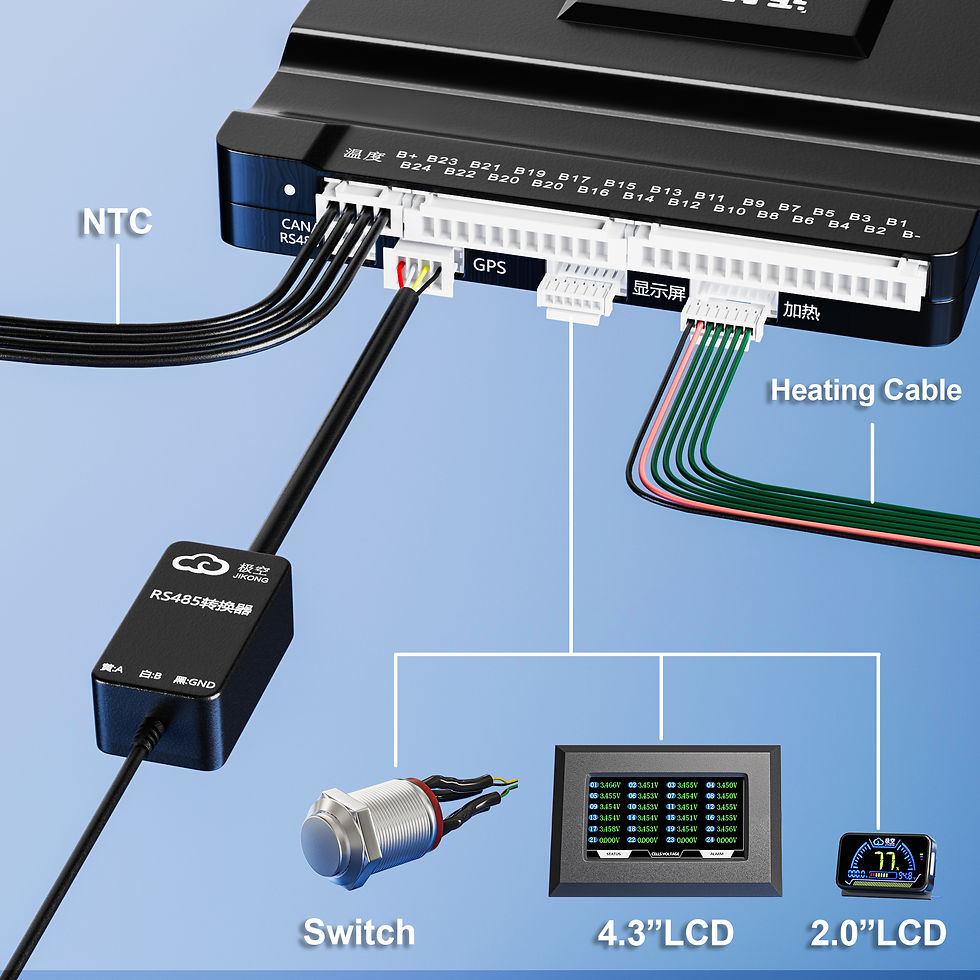

The other end of the cable plugs into the display port of the BMS, usually P6.
Appearance
This destop type design is suitable for battery pack housing, desktop, wall-mounted.
Display content

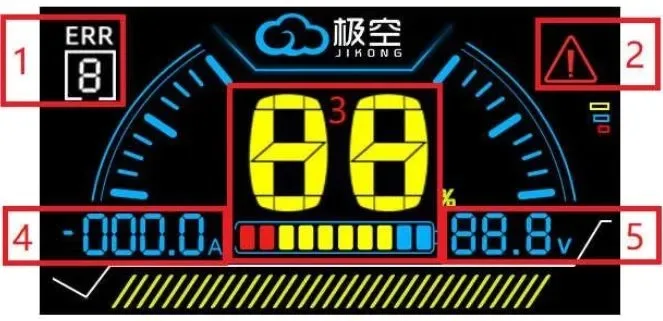

There are 5 display areas on the screen.


Area 1: Error code
Error codes are indexed as follows:

Area 2: Error warning symbol
When this symbol is displayed, it means that the BMS has detected a fault.

Area 3: Battery SOC

Area 4: Current
