SPECIFICATIONS

Brand Name: Gaqqee
Choice: yes
Condition: New
High-concerned chemical: None
Interface: Micro USB port
Maximum Operating Current: About 200mA (with volume at maximum)
Origin: Mainland China
PCB Dimensions: 95.5*61mm

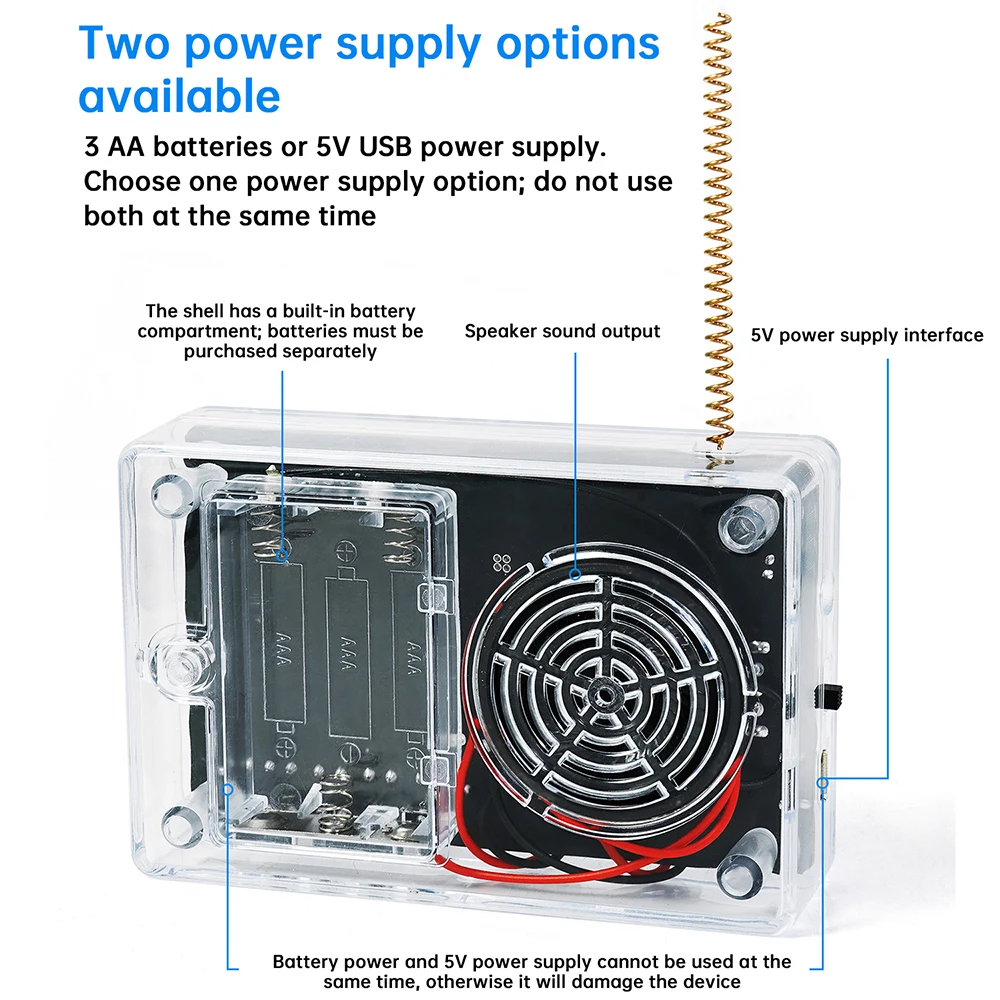

Power Supply: Three AAA batteries or 5V USB power (both cannot be used simultaneously)
Type: Module

Product Features:
1. Integrated walkie-talkie and radio functionality, enabling two-way communication alongside FM radio reception.
2. Utilises dual chips: BK4802P RF + RDA5807 radio receiver, delivering robust signal strength with enhanced noise reduction and interference resistance.

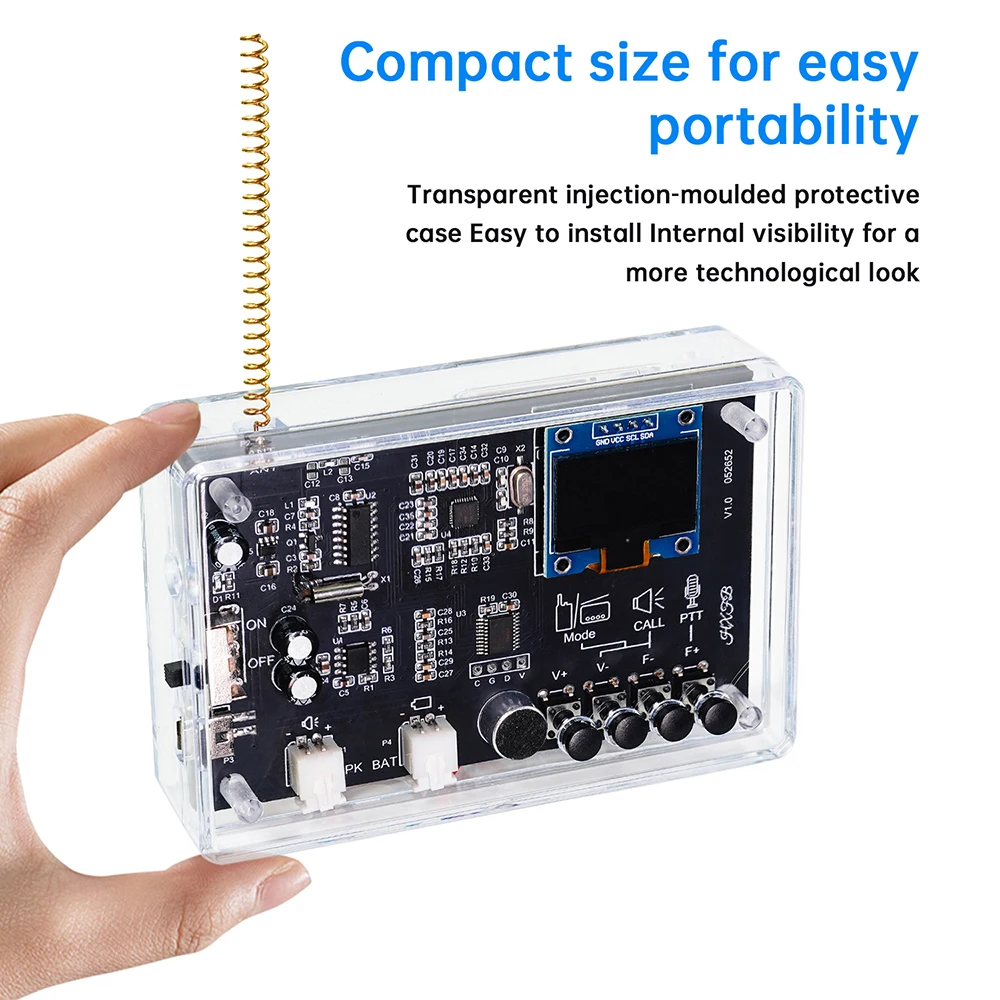

3. Features an onboard 0.96-inch OLED display for enhanced clarity.
4. Intelligent walkie-talkie radio kit delivers clear voice communication, FM radio reception, and superior audio quality.
5. Surface-mount components pre-soldered; requires soldering only a few through-hole components, fostering hands-on skills.

Product Description:

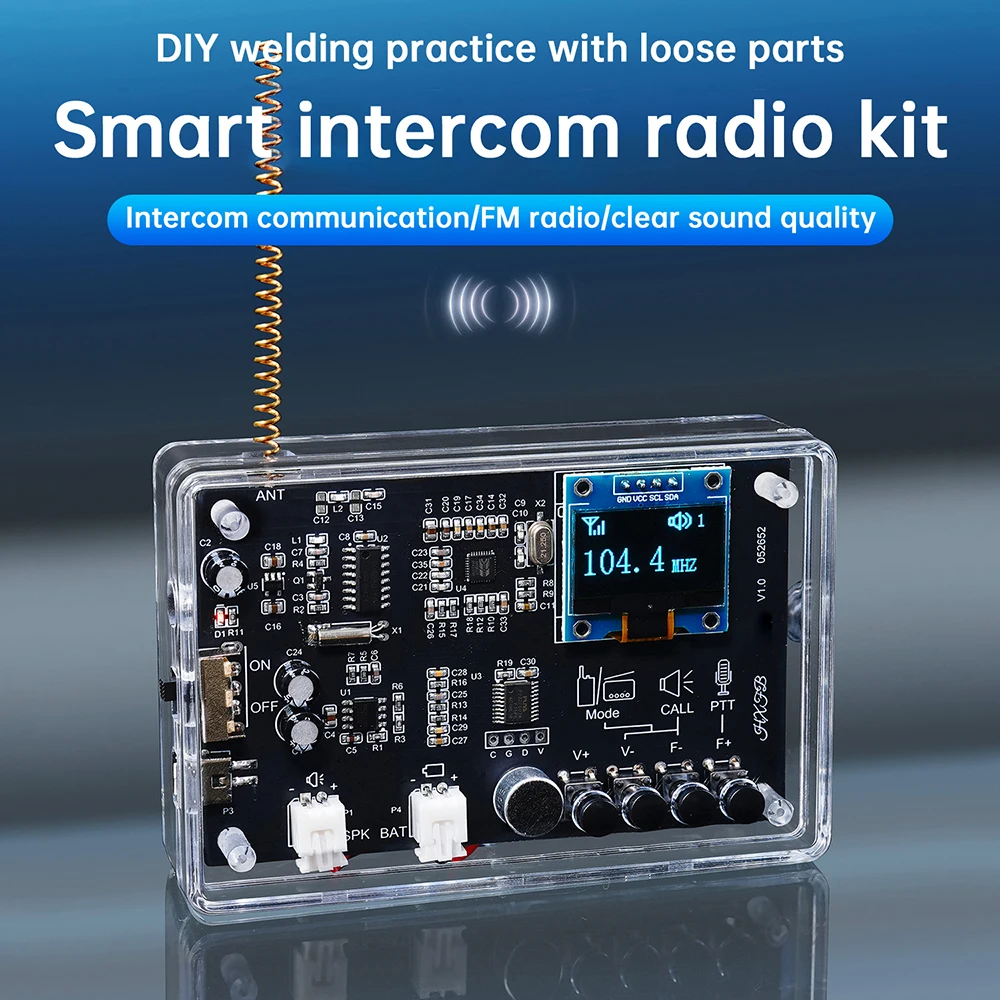

This smart walkie-talkie radio kit integrates walkie-talkie and radio functionality, fulfilling dual needs for wireless communication and radio listening. Two kits form a pair; a single unit functions as a radio but cannot operate as a walkie-talkie. Purchasing a pair is recommended. Utilising RF transceiver chips for clear, intelligible voice transmission, the walkie-talkie operates on the 409.85MHz band with an approximate communication range of 200 metres, suitable for diverse scenarios. Equipped with 87-108MHz radio reception capability, it features low noise, strong anti-interference performance, and automatic station search/storage for user-friendly operation.
Surface-mount components are pre-soldered; only through-hole components require soldering, ensuring high assembly success rates. Suitable for radio enthusiasts, electronics hobbyists, and skills training, enhancing comprehensive practical abilities.

Product Specifications:

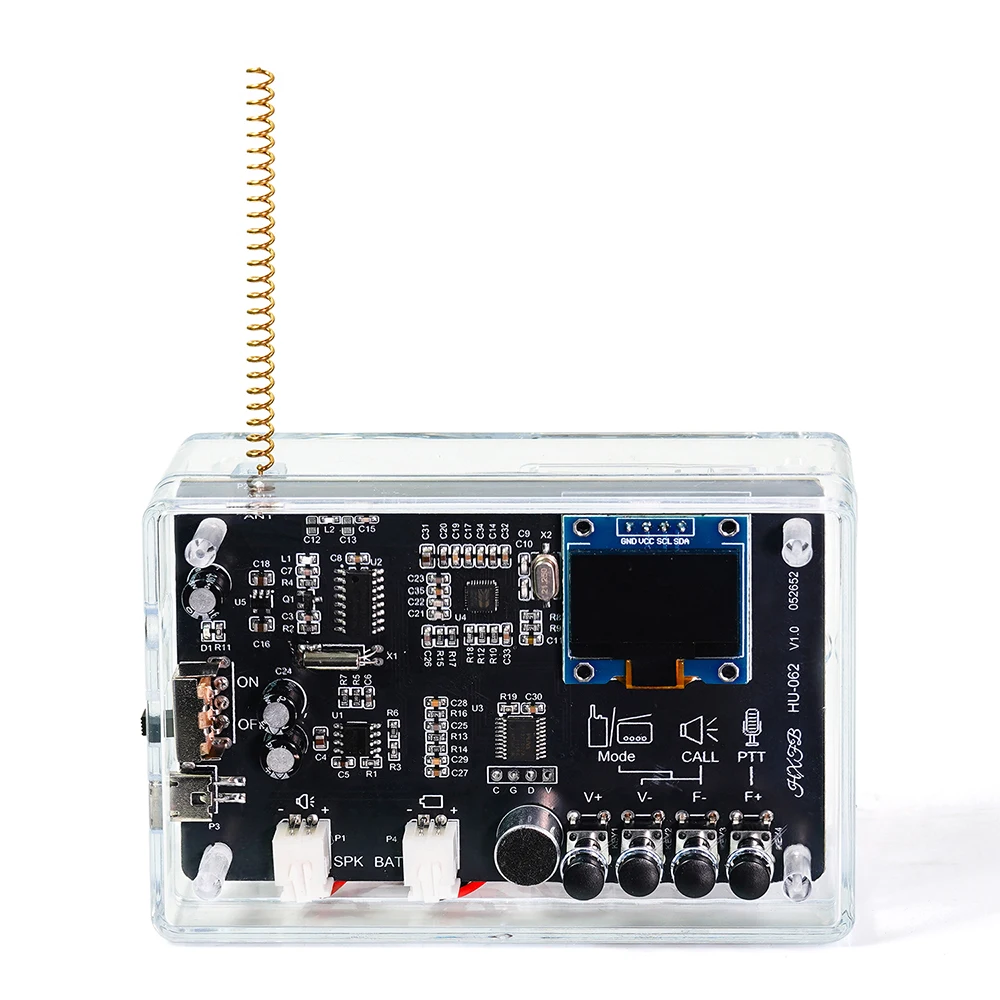

Kit Name: Walkie-Talkie Radio Electronics DIY Kit
Maximum Operating Current: About 200mA (with volume at maximum)
Power Supply: Three AAA batteries or 5V USB power (both cannot be used simultaneously)

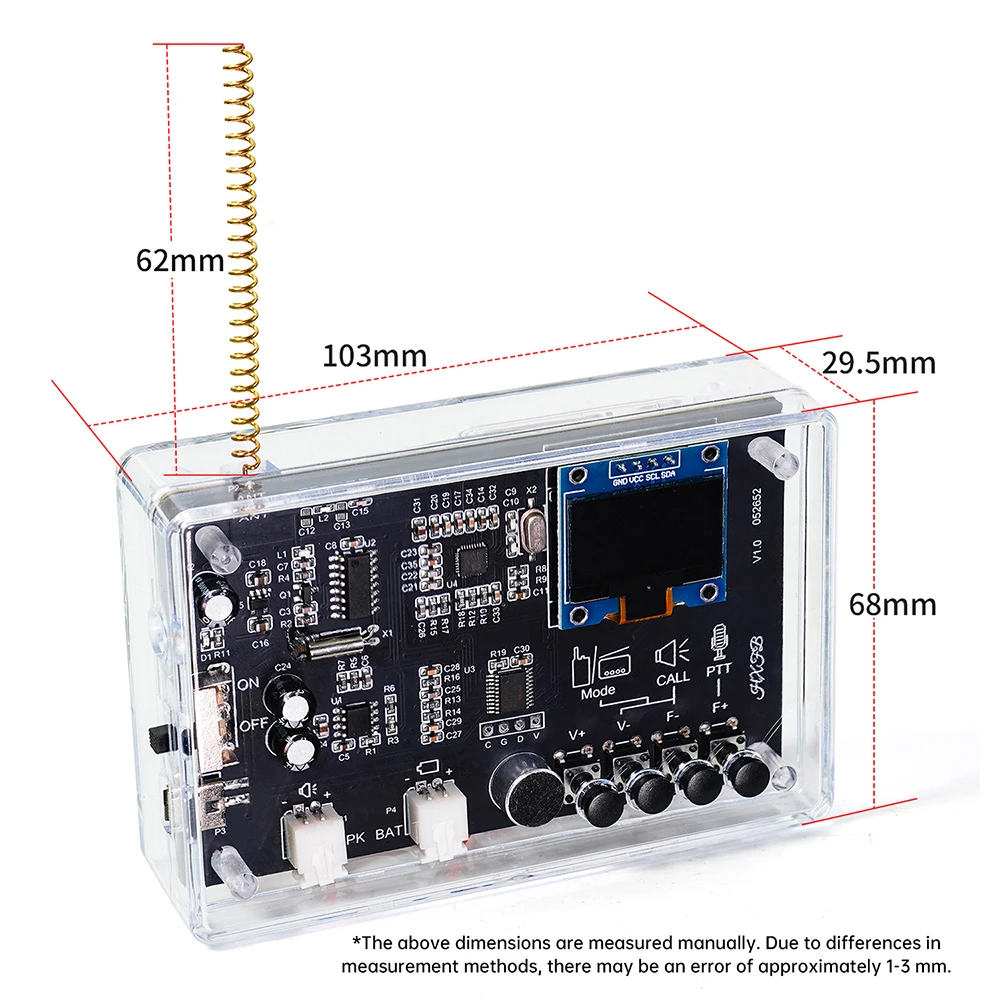

PCB Dimensions: 95.5 x 61mm

Dual-function: Walkie-Talkie + Radio Dual Mode

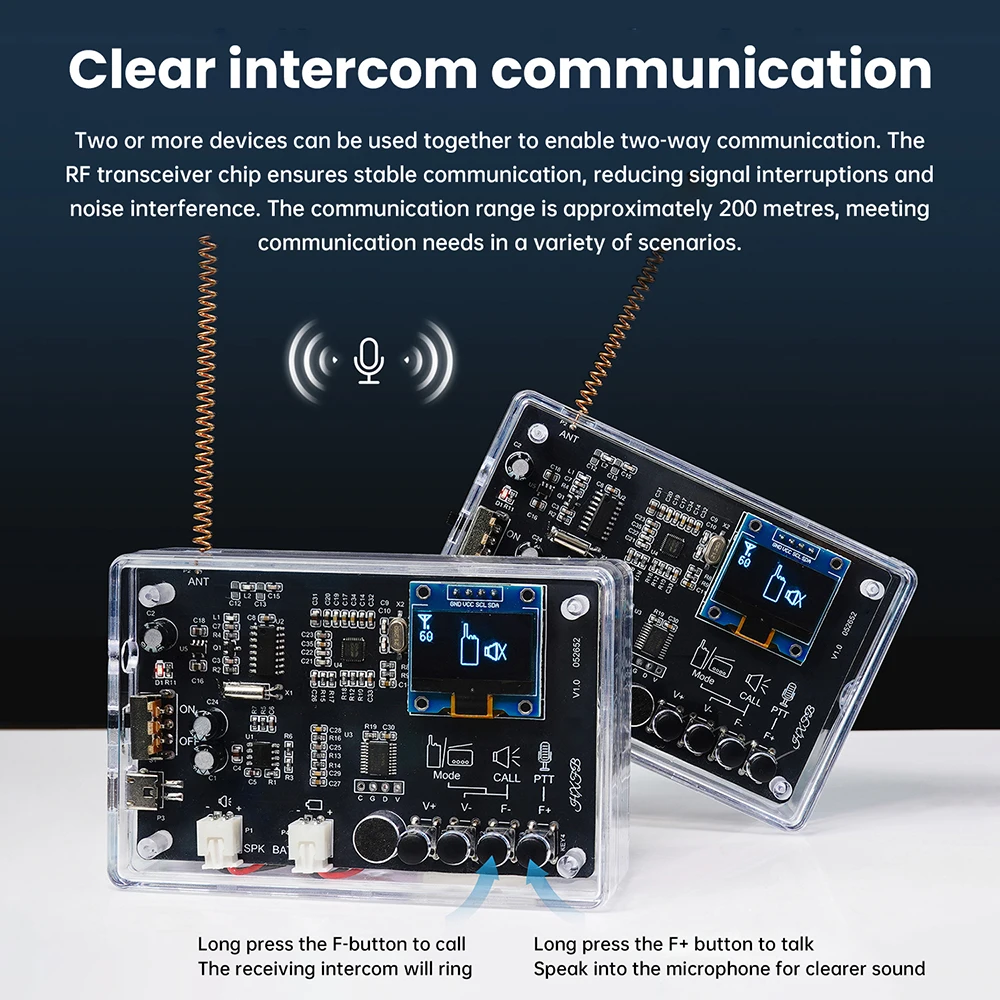

I. Walkie-Talkie Functionality:
1. Automatically detects and receives signals when idle
2. Press the ‘Talk’ button for voice communication
3. Press the ‘Call’ button to trigger a ringtone on the receiving unit
4. Displays walkie-talkie signal strength
5. Operates on the 409.85MHz frequency band
6. Communication range approximately 200 metres

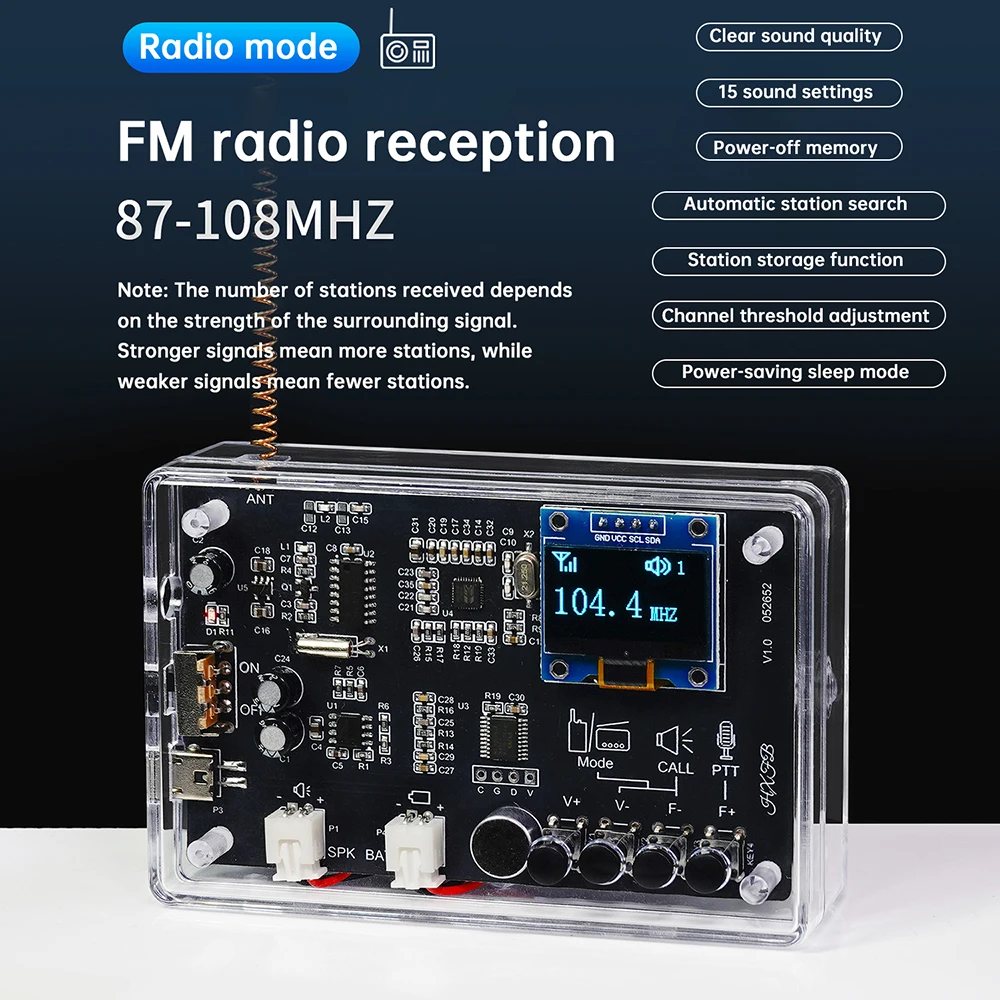

II. Radio Function:
1. Automatically scans and stores nearby stations when no presets exist (maximum 30 stations; excess cannot be stored)
2. 15 volume levels for adjustable sound
3. Features power-off memory, auto-scan/preset storage, and station list management
4. Sleep mode for enhanced power efficiency
5. Radio reception band: 87-108MHz
6. Adjustable channel search threshold
7. Display of radio signal strength

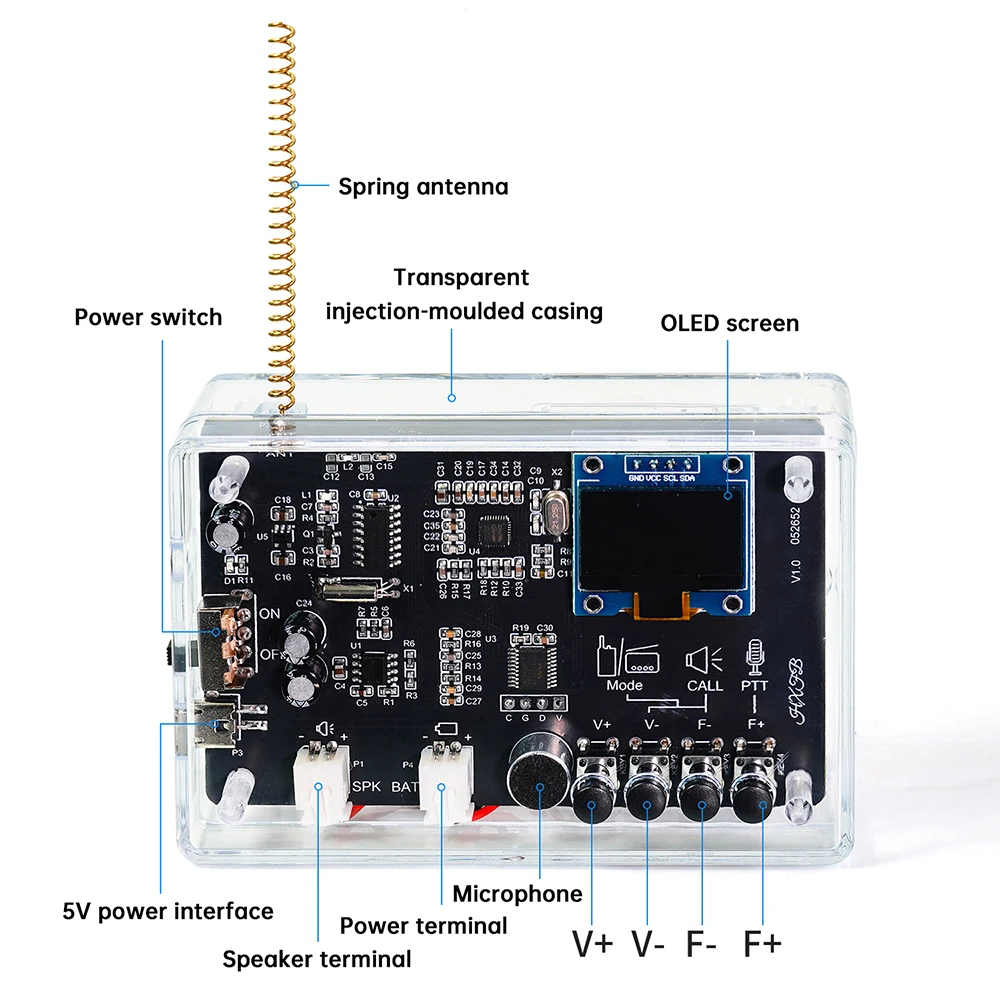

Features:
1. OLED display for clear functional readouts
2. RDA5807 radio chipset delivers noise reduction, bass enhancement, high sensitivity, low noise, and strong interference resistance
3. BK4802P RF transceiver chipset offers outstanding noise cancellation, robust audio processing, broad frequency coverage, and exceptional interference immunity.

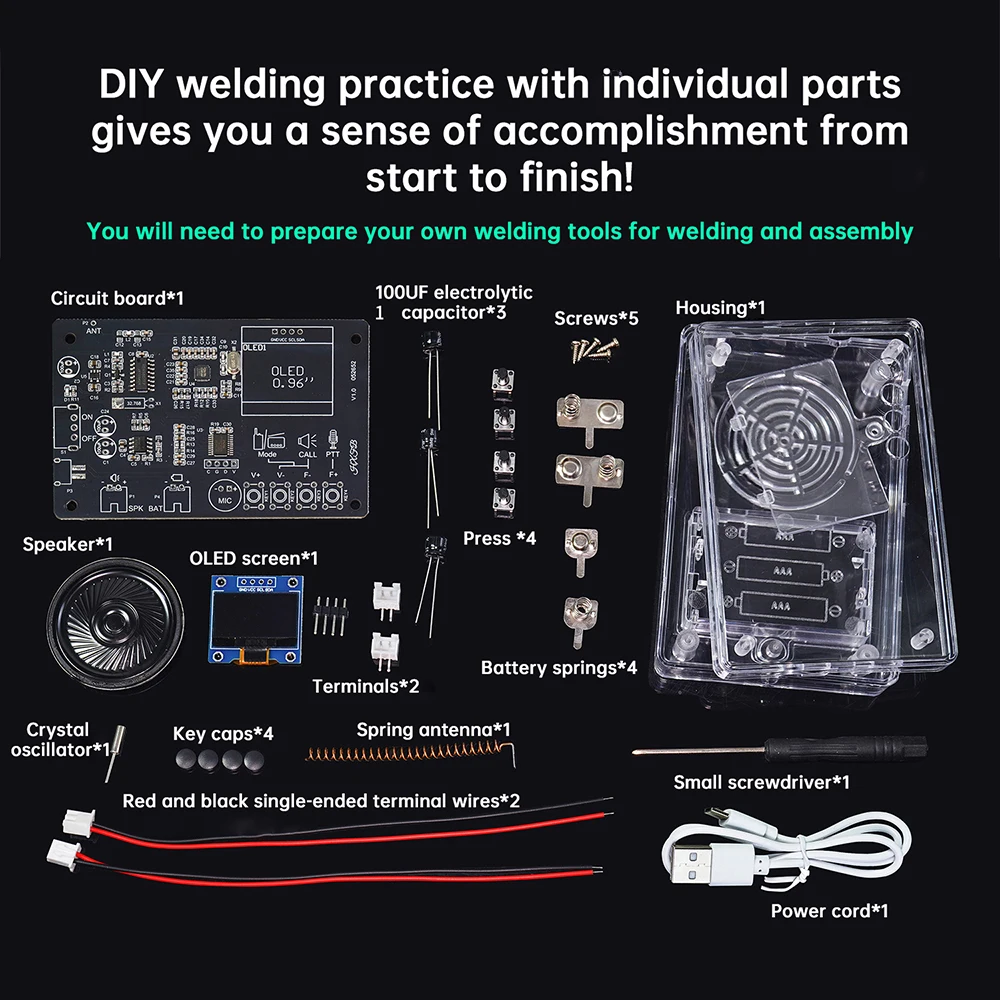

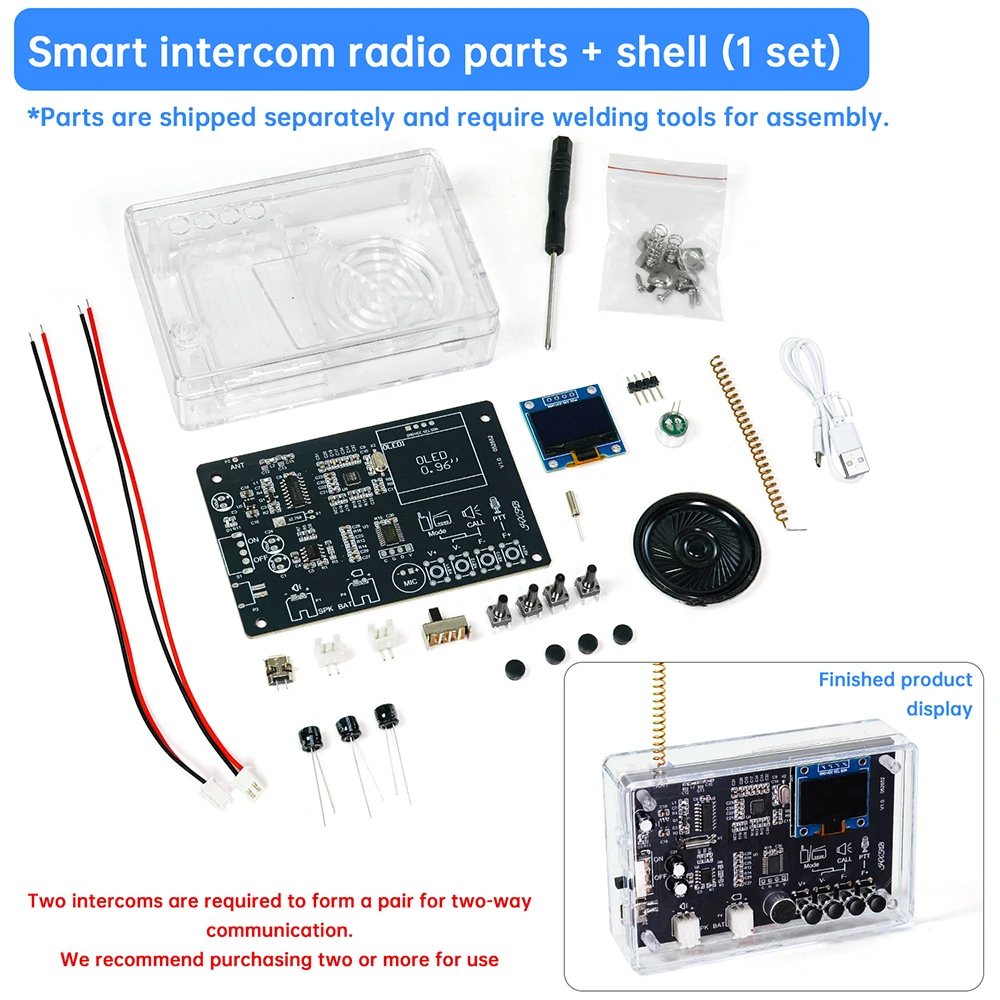

Product Listing:
1x Radio Electronics DIY Kit

Note: This DIY kit requires self-assembly via soldering to develop practical skills. Soldering tools must be provided by the user. Detailed assembly instructions are included.
