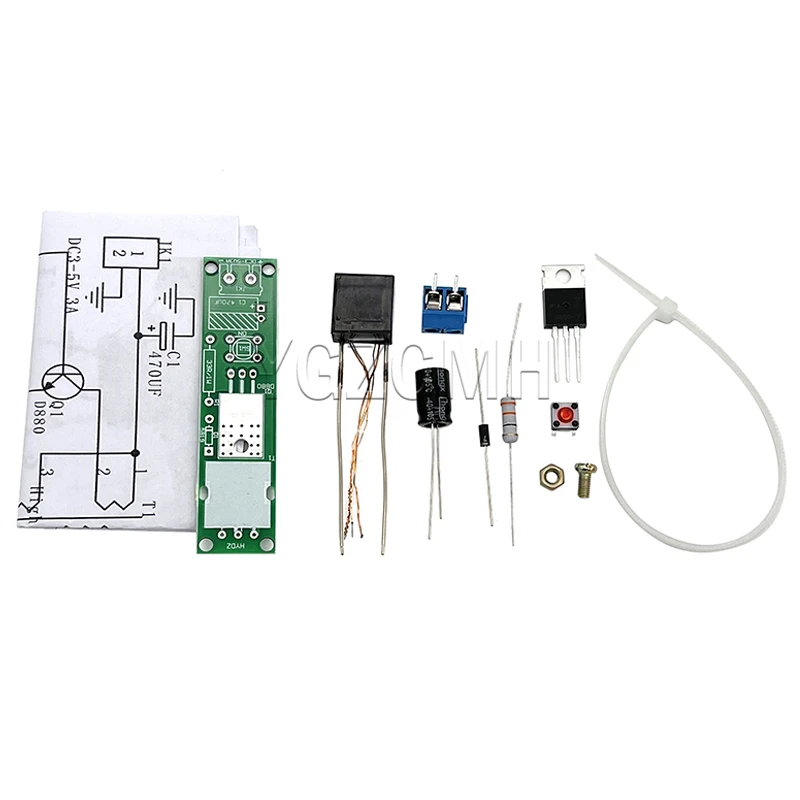

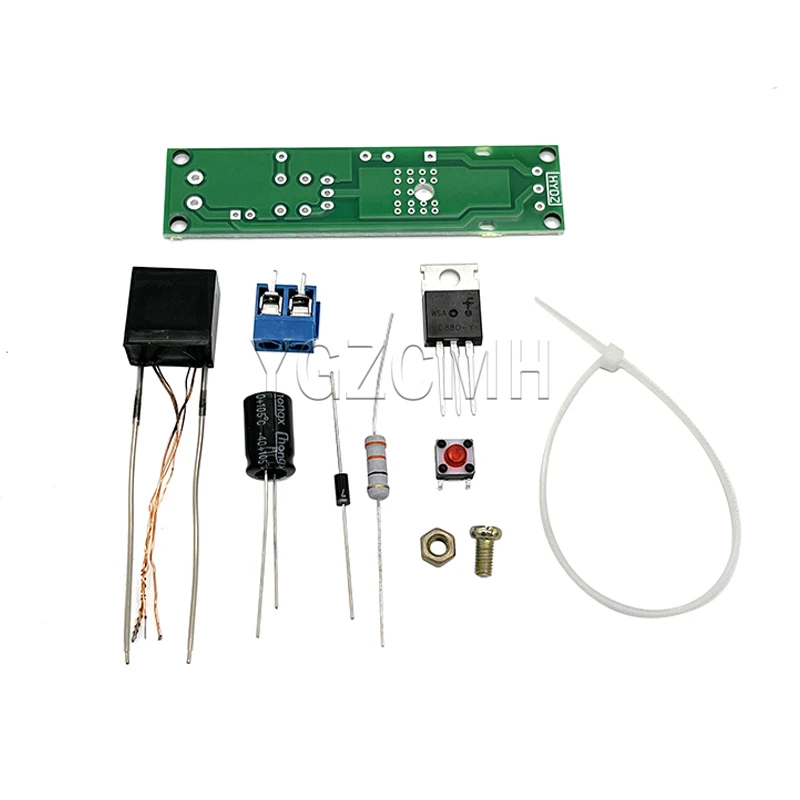

This is a DIY electronic welding kit, which requires the buyer to weld it himself, not a finished product! Not assembled!

We can only guarantee the integrity of the product before shipment, and cannot guarantee the buyer 100% success after installation. Successful welding is based on personal circuit knowledge and welding experience. Please do not object to the fault caused by personal welding technical problems. Please read and understand before payment! Thank you.

Note: Due to air transportation requirements, all products do not include batteries!

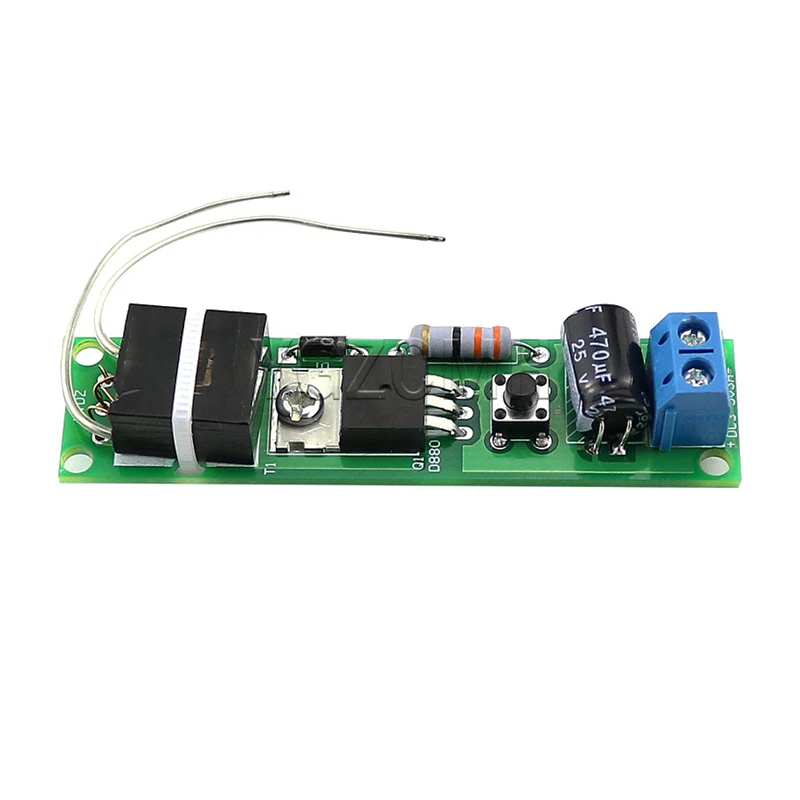

The product is shipped in parts, and the buyer needs to weld it by himself. When the input terminal of this product is connected to a DC 3-5V power supply, and the secondary high-voltage output is not connected to a high-voltage rectifier diode and capacitor, the output two-stage line terminal can generate a purple high-temperature arc of ≤0.8 cm long, no crackling sound, but the temperature is very high, It is easy to light paper and cigarettes instantly, and even very thin iron wires burn with sparks (such as the scene where the thin iron wires burn in oxygen during the chemical test of junior high school, but it is not as intense as in oxygen)

The transformer has been encapsulated with resin, which has high safety and can work reliably and continuously for a long time. However, it is recommended that each time the cigarette is turned on for no more than 1 minute, pay attention to heat dissipation.

Parameter:
Kit size: 71L*18W*12Hmm
Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V 18650 lithium battery.
Output pulse voltage: 0.5kv-0.8kv
Working frequency 20khz-25khz
Arc distance: 5-8mm

Transformer wire processing:
1. Distinguish three types of wires and coat a layer of tin at the end of the wire.
2. Use a screwdriver to wrap the excess wire like a spring
3. The three wires look like they are wound, make sure that the left side is a thin line, the middle is a thick line, and the right side is a thick line.
Note: The power supply of this unit is 3-5V DC. The current is about 3A, and it is recommended to use a 18650 lithium battery to power the power, with an arc up to about 5 mm.
