Dc LC Low-pass High-frequency EMI Electromagnetic Interference EMC Automotive Audio Switching Power Ripple Filter

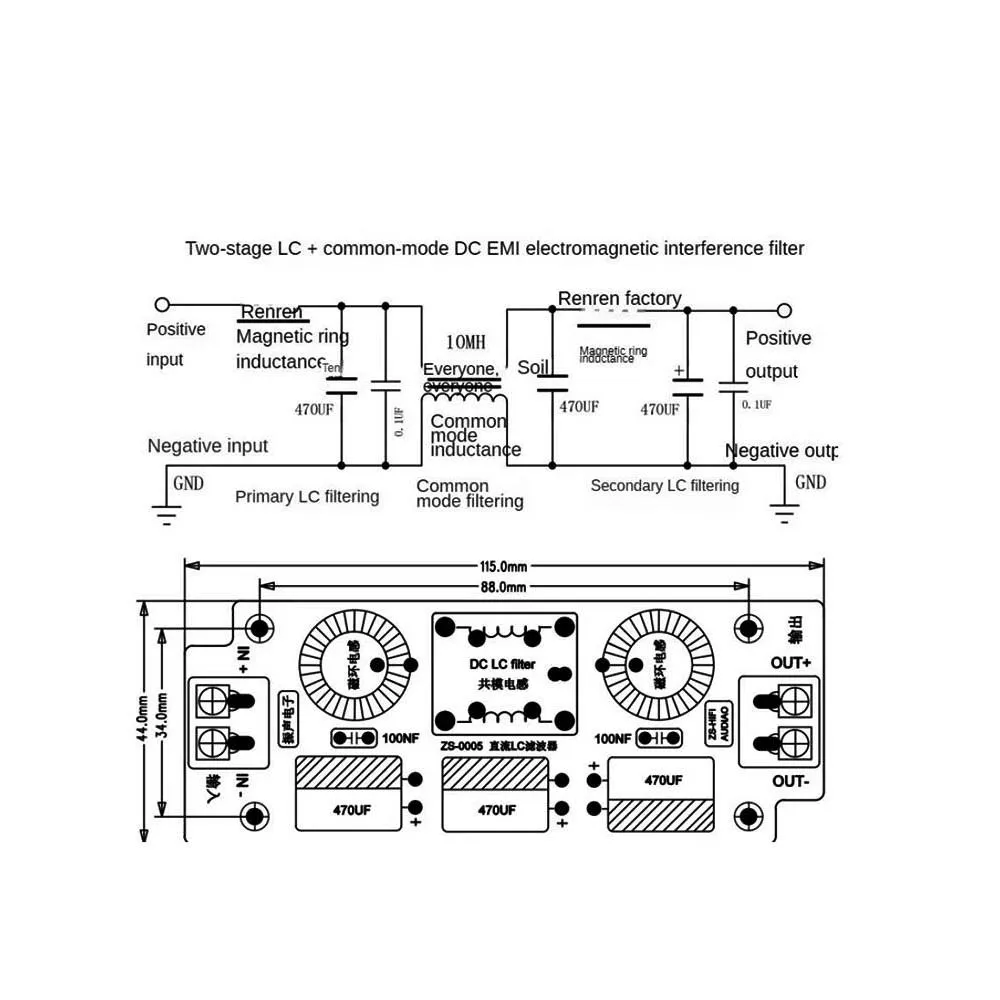

DC power filter circuit introduction: The circuit is composed of three filters, the first part is a level LC filter . The second part is a common-mode EMI filter, and the third part is a two-stage LC filter.


LC filter is generally called passive filter, is a traditional DC power supply harmonic composed of inductors and capacitors
The compensation device can filter the harmonics in the power supply one or more times, purify the DC power supply, and the common mode filter can be used
In order to solve the problem of fast transient group pulse interference with a repetition rate of several thousand Hertz in some users' field
Can act as a depressant.


Input: DC.
Output: DC
Voltage: 63V (Higher voltage can be replaced with electrolytic capacitor lift)
Current: 6A OR12A
Main parts specifications:
Circuit board: double-sided FR4 fiberglass board
Electrolytic capacitor: 63V470UF diameter 13MM dosage 3PCS because the supply of fever capacitor is unstable, it will make
Import capacitors with different brands
Thin film capacitance: 100NF2PCS
Magnetic ring inductance: 2PCS,
(Choose iron-silicon aluminum inductor),
Common mode inductance; Dosage 1PCS,
(Select flat copper inductor)
Socket: 7.62 socket 2PIN2PCS
Housing: Aluminum alloy housing (as required)
This module is suitable for eliminating the use of DC power supply with electromagnetic interference, and can be applied after the output of switching power supply
Filter, automobile, motorcycle, direct current circuit with strong electromagnetic interference
