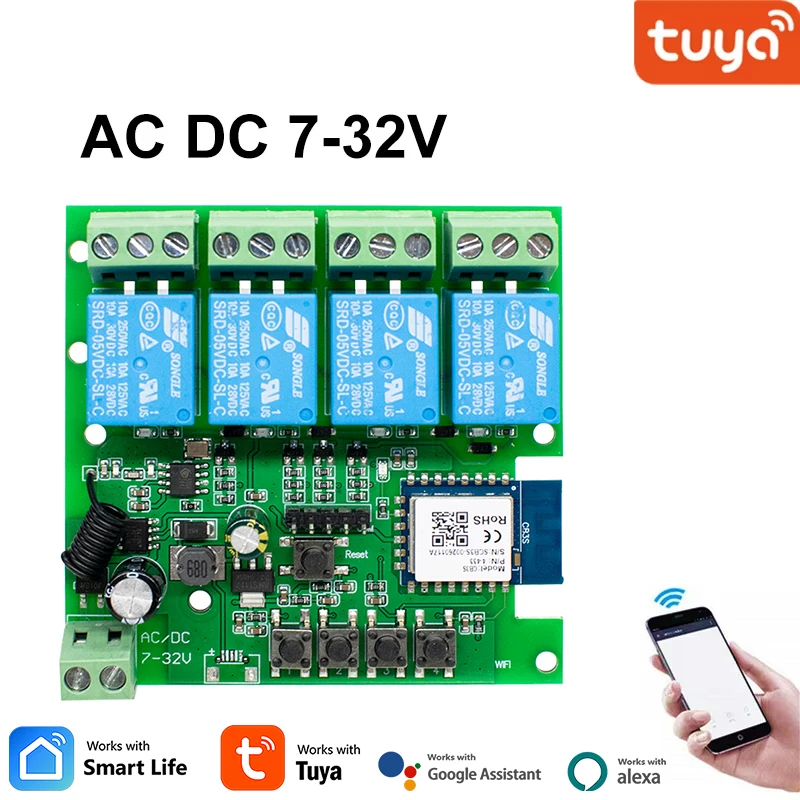

SPECIFICATIONS

APP: Smart Life / Tuya
Brand Name: Scimagic-RC
Camera Equipped: No
Certification: CE
Channel: 4
Choice: yes
Communication method: Wi-fi
Compatibility: All Compatible
Feature 1: Work with Alexa
Feature 2: Work with Google home
High-concerned chemical: None

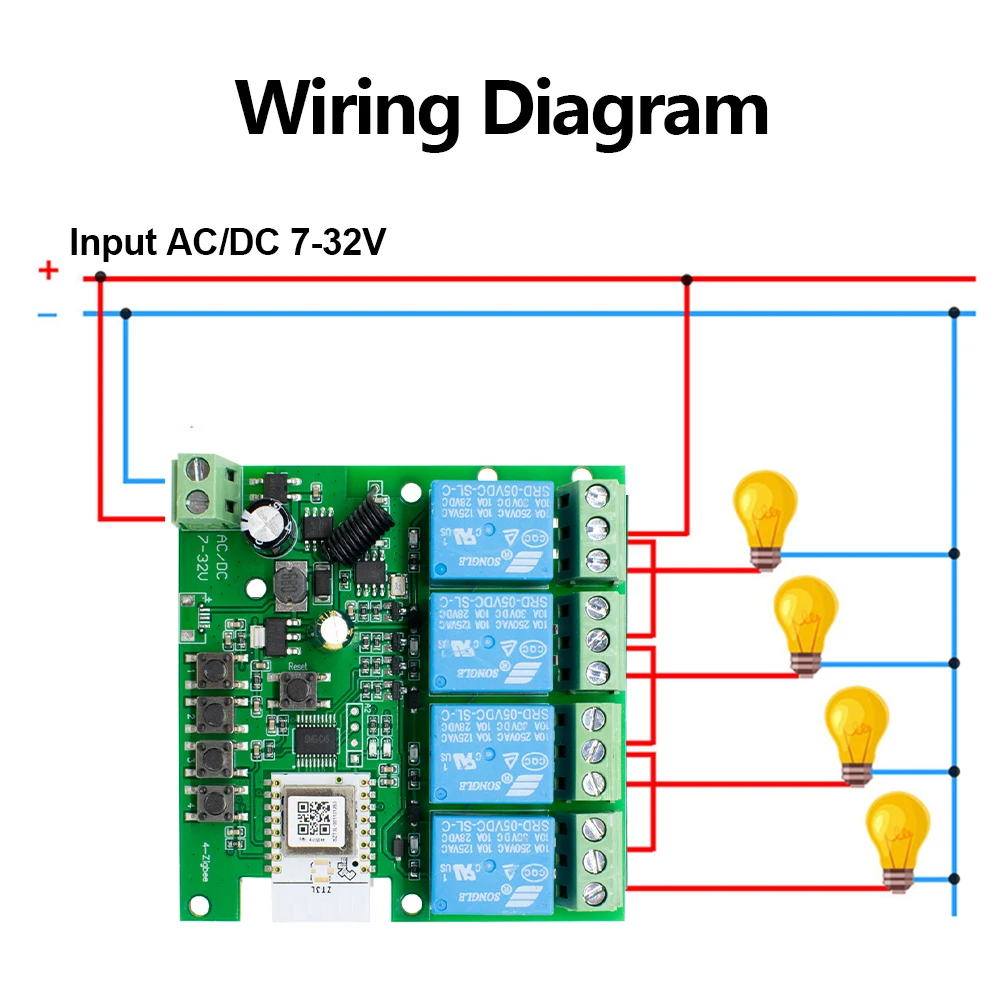

Input voltage1: AC/DC 7V-32V

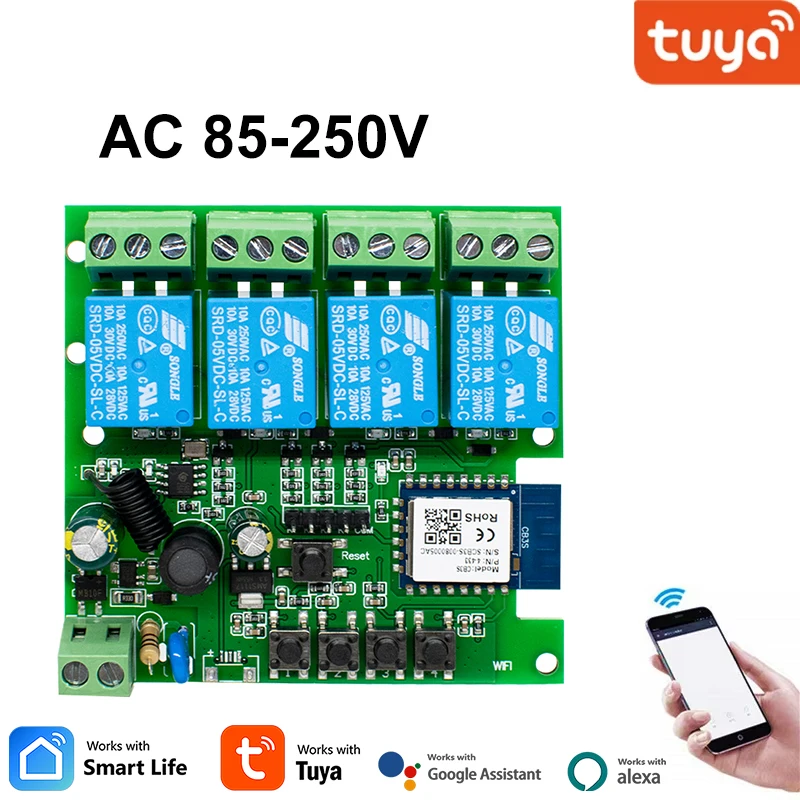

Input voltage2: AC 85-250V
Max current: 2200W/10A
Model Number: E0803
Operating Humidity: 40% ~ 80% RH
Origin: Mainland China
RF433 Code: Learning Code 433mhz
State of Assembly: Ready-to-Go

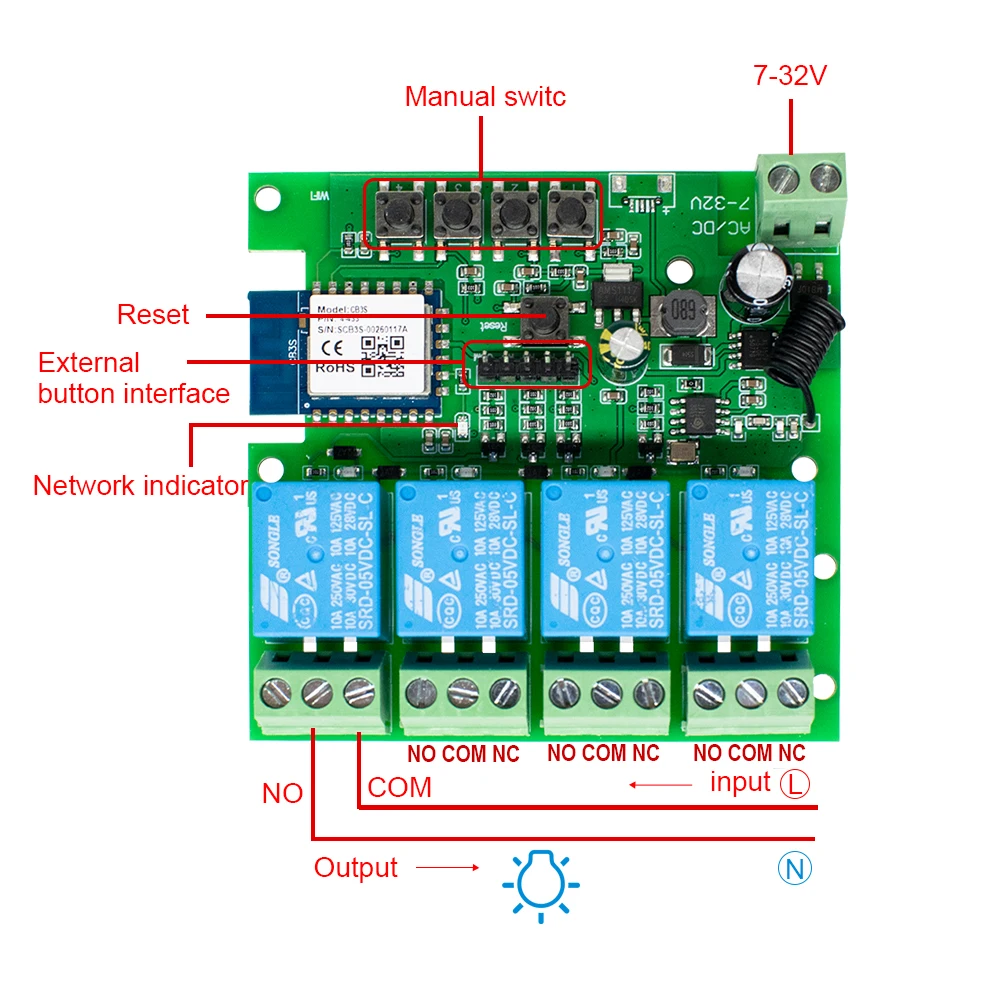

connection method: dry contact
semi_Choice: yes
working temperature: -20 degrees to +70 degrees


Function
【APP Remote Control】
You can check the working state of the device in Tuya APP anywhere and anytime.
【RF433mhz Control】
The device can be controlled by the RF433mhz Remote Controller.
【Mobile Phone Control】
When you go outside or at home, your smart phone could control the device by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
【Voice Control】
You could voice control the device by Alexa/Google Assistant.
【Timing function】
 Lying in bed without turning off the lights fell asleep, it does not matter, the wall switch timing function to the point of turning off the lights, from the lights off do not worry about.

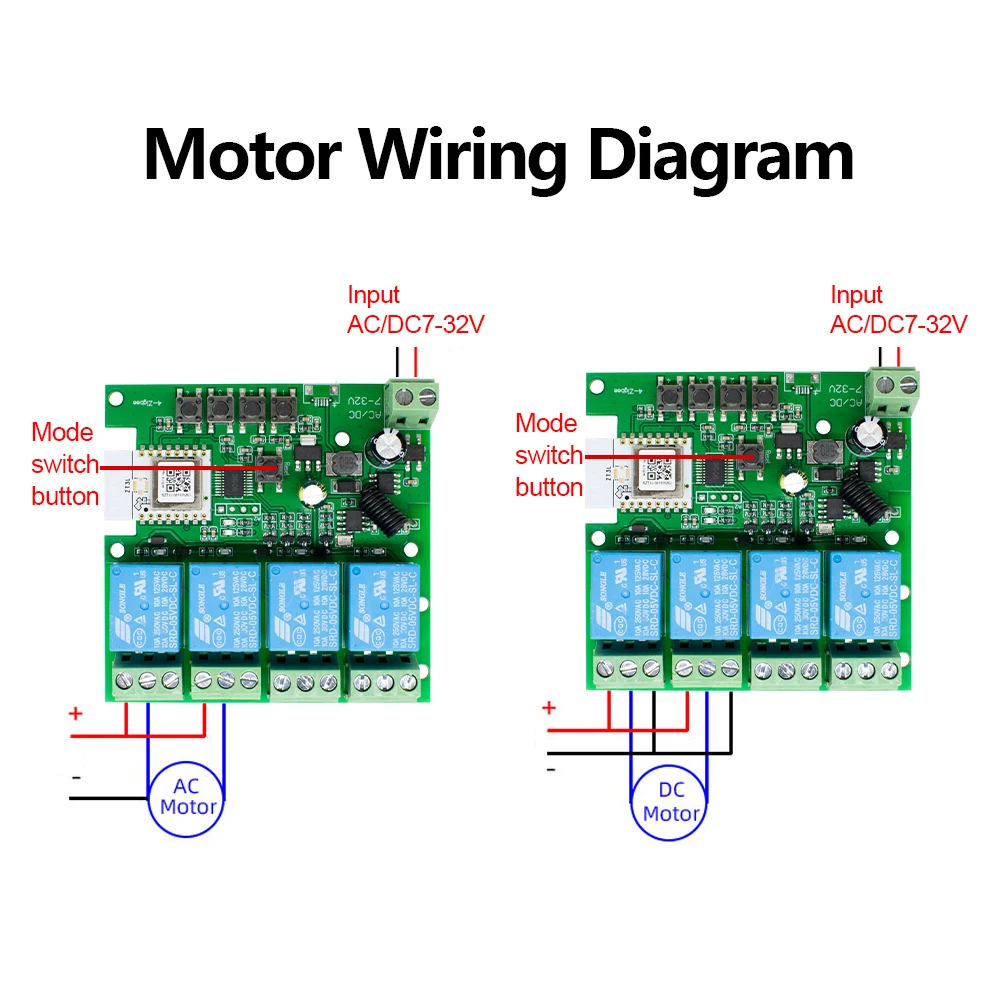

【Three Working Modes】
 Self-locking, Interlocking, Jog
Features:
App:Tuya / Smartlife
Input voltage : DC/AC 7-32V AC 85-250V
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size:
with Case 80*75*25mm
no Case 75*73*20mm
Noted :
Your have the correct wif password.
 Your smart phone or tablet must have access to APP store or google play.
 Your router is MAC-open.
 Your smart phone or tablet has connected to a 2.4g wifi with internet.
 Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Include:
1* wifi module
1* manual
